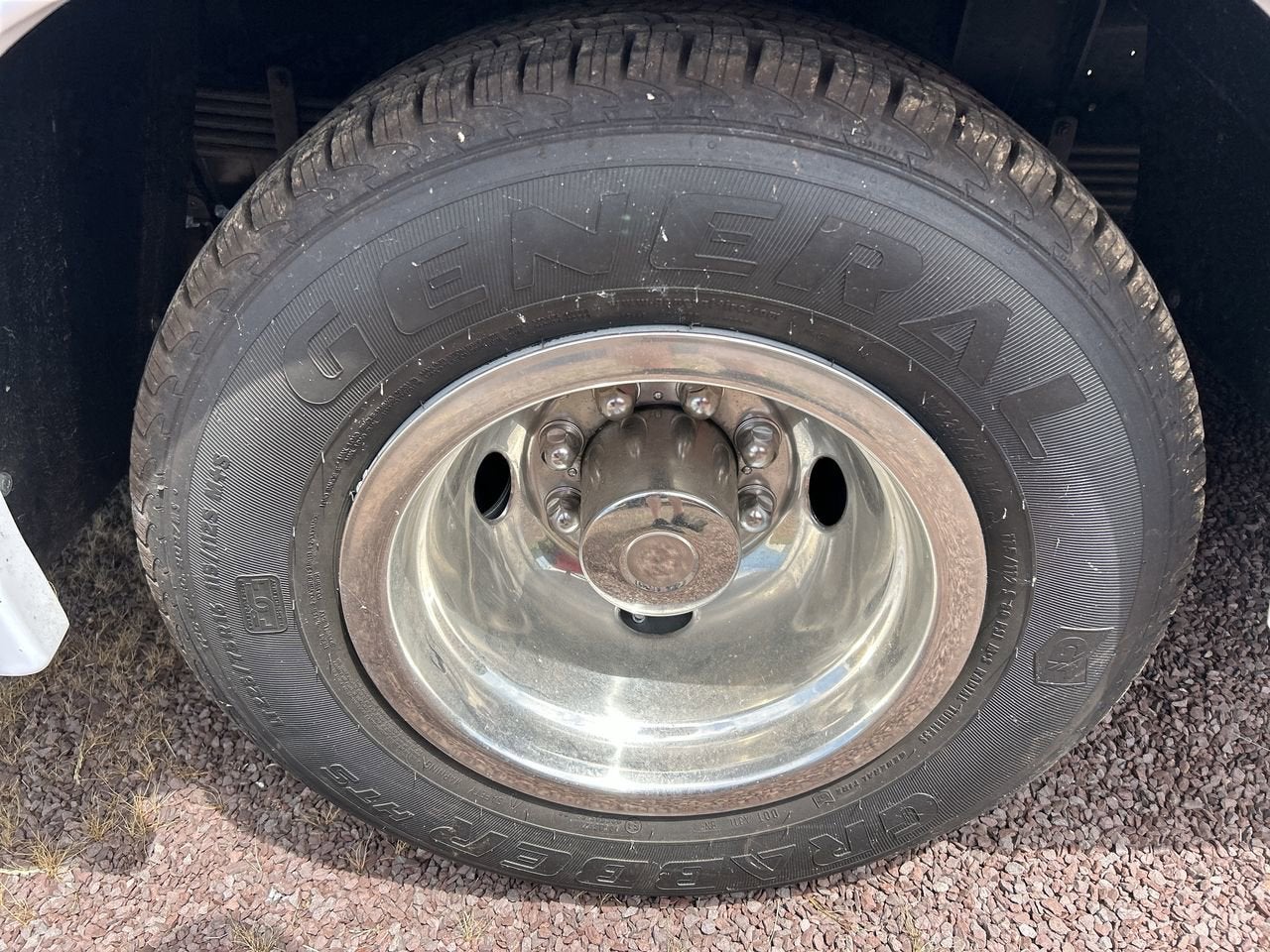

• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm), 8-lug painted steel, heavy-duty (Only available with (R04) single rear wheel configuration.)
• Tires, front LT245/75R16E all-season, blackwall (Requires (R04) single rear wheel configuration. Jack and spare tire equipment bracket are not included.)
• Tires, rear LT245/75R16E all-season, blackwall (Requires (R04) single rear wheel configuration. Jack and spare tire equipment bracket are not included.)
• Wheel configuration, rear, single (Not available with (C7N) 12,300 lbs. (5579 kg.) GVWR.)
• Bumper, front painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
• Grille, Black composite (Not available with (ZR7) Chrome Appearance Package.)
• Headlamps, dual halogen composite
• Flasher, heavy duty light emitting diode (LED)
• Glass, Solar-Ray light-tinted, all windows
• Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (U2K) SiriusXM Radio.)
• Wi-Fi Hotspot capable (Included and only available with (UE1) OnStar. Terms and limitations apply. See onstar.com or dealer for details.)

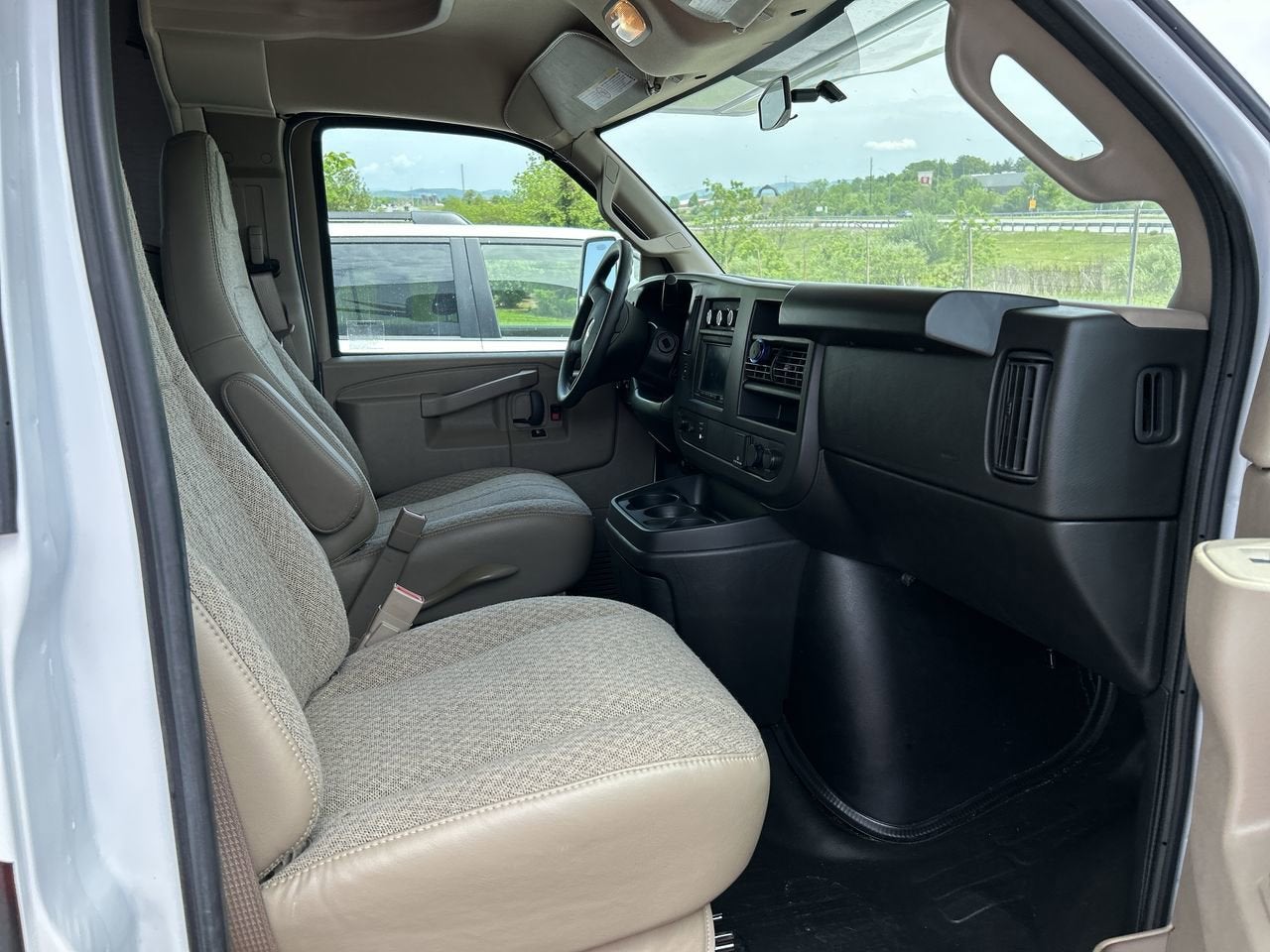

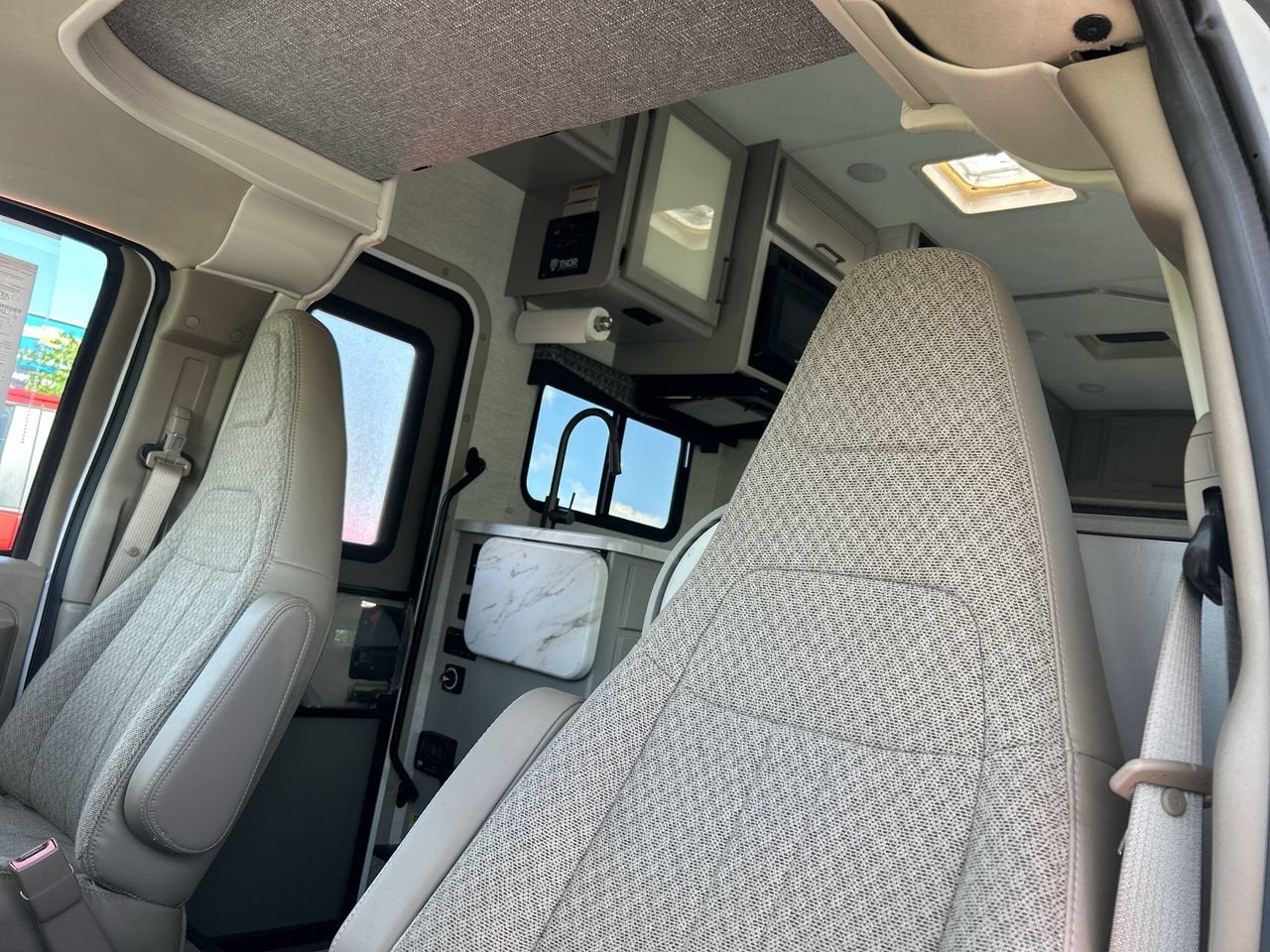

• Seating arrangement, driver and front passenger high-back bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal airbag.)

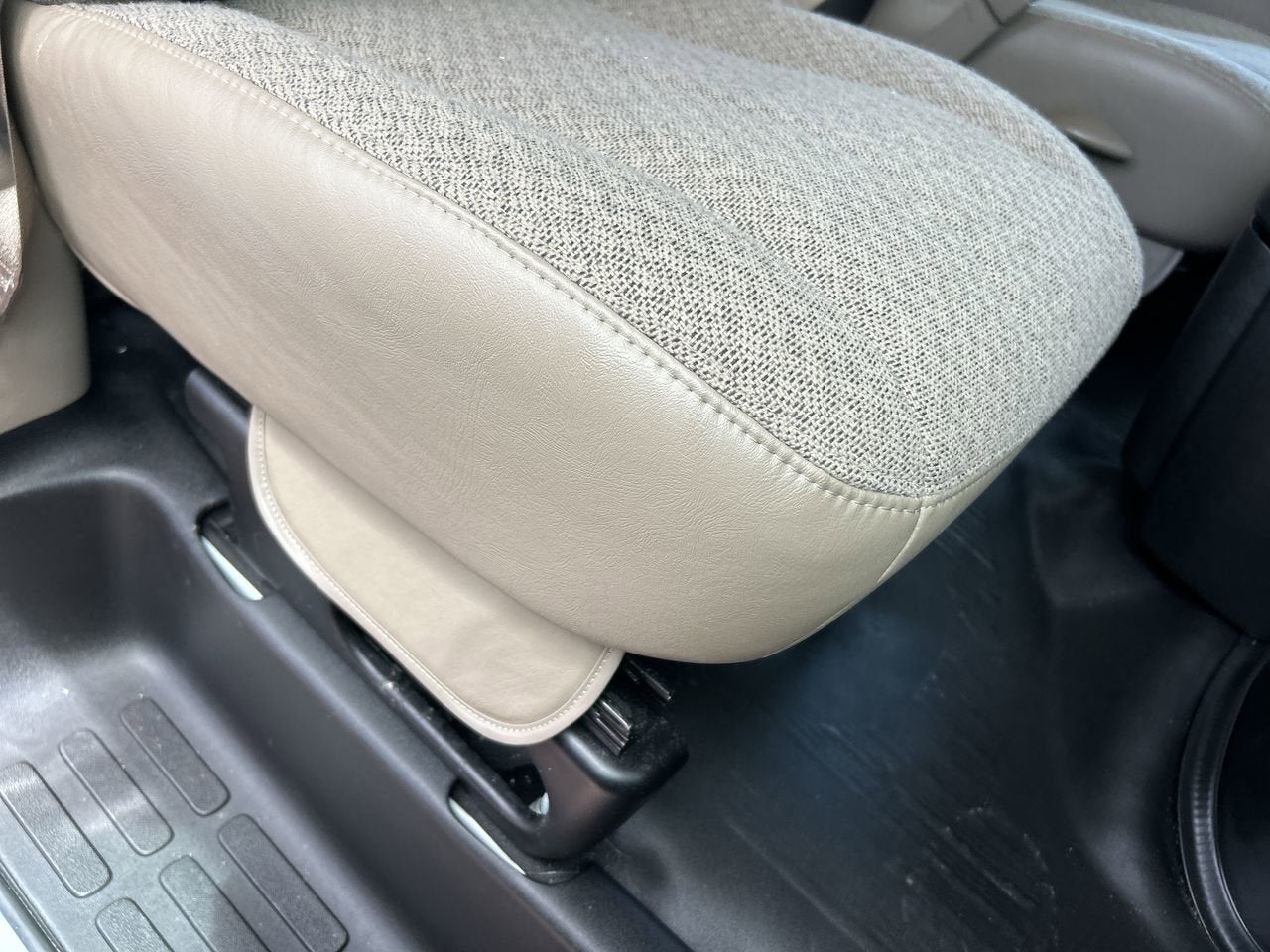

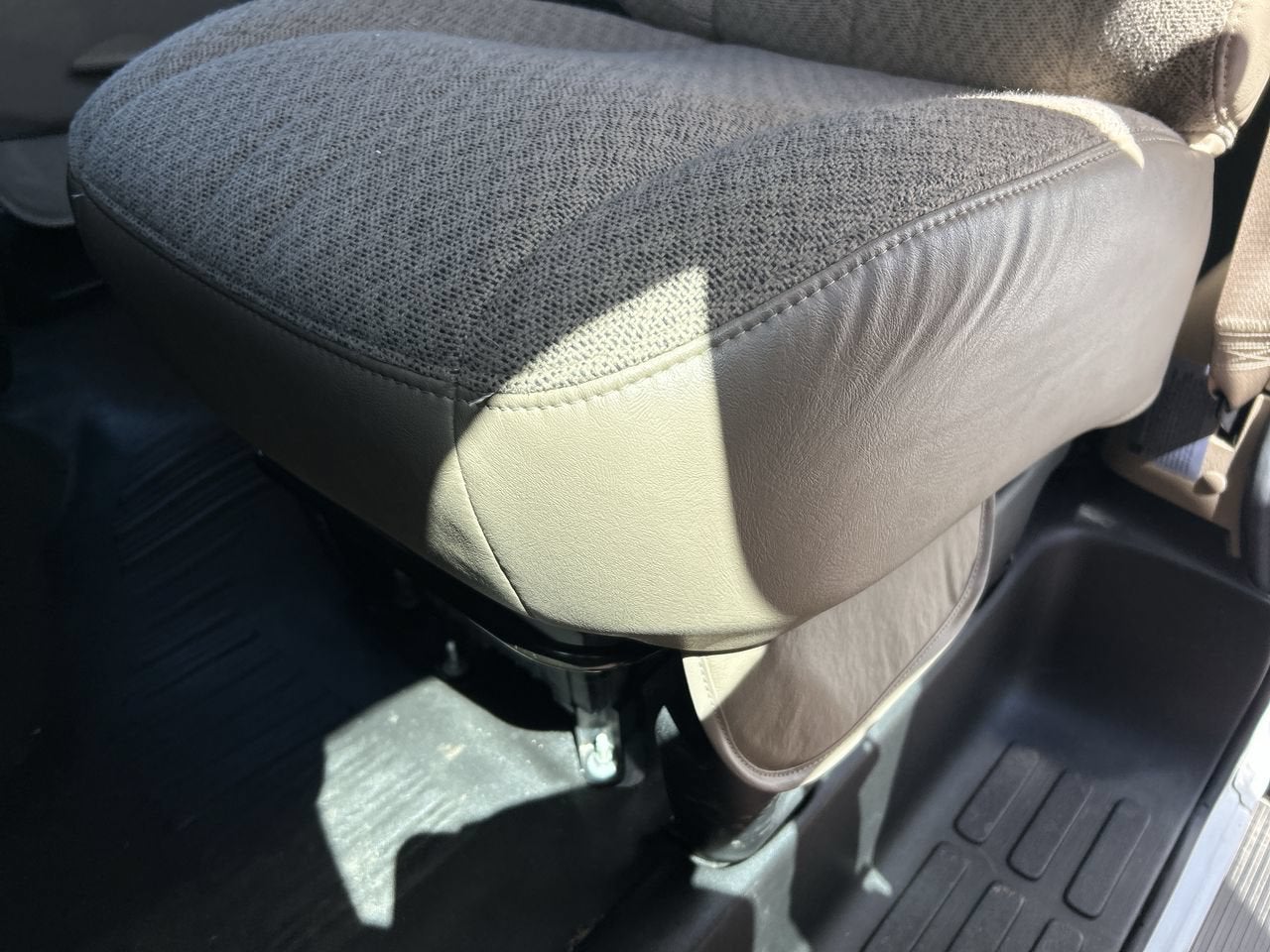

• Seats, front bucket with vinyl trim and head restraints includes inboard armrests (Requires (**W) trim. Not available with SEO (ZP0) delete driver and passenger seats. Includes only driver high-back bucket seat with vinyl trim when ordered with (ZX1) driver-only high-back bucket seating arrangement.)
• Floor covering, Black rubberized-vinyl front
• Warning tones, headlamp on and key-in-ignition
• Oil life monitor
• Theft-deterrent system, vehicle, PASS-Key III
• Power outlet, 120-volt
• Air conditioning, single-zone manual
• Heater and defogger with front and side window defoggers
• Mirror, inside rearview includes Rear Vision Camera display (Included and only available with (UVC) Rear Vision Camera.)
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handles, driver and right-front passenger
• Lighting, interior with dome light and door handle-activated switches
• Chevrolet Connected Access capable (Included and only available with (UE1) OnStar. Subject to terms. See onstar.com or dealer for details.)

• Daytime Running Lamps
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Hill Start Assist
• Airbags, frontal, front driver and right front passenger includes passenger-side frontal airbag deactivation switch (Included with (ZX2) driver and right-front passenger high-back bucket seats or (ZP0) driver and passenger temporary seats. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver-side only frontal airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbags, seat-mounted side-impact for driver and right-front passenger and roof-rail mounted head-curtain side-impact (Included with (C4M) 9900 lb. (4490 kg) GVWR. Available on (JFF) 10100 lb. (4581 kg) GVWR, (C7N) 12300 lb. (5579 kg) GVWR, and (C7I) 14200 lb. (6441 kg) GVWR. Not available with (B3D) School Bus Package, (ANC) Shuttle Bus Package and (9T7) right-hand door delete. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbag deactivation switch, frontal passenger-side (Not available with (AJ3) frontal, driver-side only airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable (Not available with (YF1) RV Package or (YF2) Ambulance Package. Included with (FDR) Fleet Daily Rental order types. Terms and limitations apply. See onstar.com or dealer for details.)
• Rear Vision Camera camera and cable shipped loose (Display included with (DRJ) inside rearview mirror.)
• Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)

TIRE VALVE STEMS, BRASS IN LIEU OF STANDARD

• Also included on spare when furnished

CONSOLE, ENGINE COVER

• with swing-out storage bin

VISORS, DRIVER AND FRONT PASSENGER, VINYL

• in lieu of standard cloth

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking
• Powertrain Grade Braking
• and Tap-Up/Tap-Down Driver Shift Control (STD)

ENHANCED TOWING PERFORMANCE PACKAGE

• GCWR increased to 20
• 000 lbs. (9072 kg). Includes (GT5) Rear axle
• 4.10 ratio.

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM, HEAD RESTRAINTS AND INBOARD ARMRESTS

• Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)

BATTERY, 770 COLD-CRANKING AMPS PRIMARY, ISOLATED 2ND HEAVY-DUTY 770 COLD-CRANKING AMPS

• allows 2nd battery to be used when the vehicle is not running without affecting ability to start the vehicle

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER

• seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary jack and 2 front door speakers (STD)

TIRES, FRONT LT225/75R16E ALL-SEASON, BLACKWALL

• Jack and spare tire equipment bracket are not included.)

FUEL, ADDITIONAL 3-GALLONS

• 3 gallons of fuel in addition to normal assembly plant fill

TIRES, REAR LT225/75R16E ALL-SEASON, BLACKWALL

• Jack and spare tire equipment bracket are not included.)

WIRING JUNCTION BLOCK EQUIPMENT ACCESSORY

• includes 2-30 amp circuits

FUEL TANK CAPACITY, APPROXIMATELY 57 GALLONS (215.7L).

• As part of the base design
• includes the auxiliary feed fuel fitting and in tank return line.

RV PACKAGE

• Includes (ZR7) Chrome Appearance Package
• (ZQ2) Power Convenience Package
• (ZQ3) Driver Convenience Package
• (D31) inside rearview manual day/night mirror or (DRJ) inside rearview mirror with rear vision camera display
• (BA3) console with swing-out storage bin
• (BNC) soft-mount donut and bolt
• (KW5) 220 amp alternator
• (TP3) dual batteries (770 cca primary and 770 cca isolated)
• SEO (8E1) 3 additional gallons of fuel and (9L7) equipment accessory wiring junction block

BODY, STANDARD

• (STD)

DRIVER CONVENIENCE PACKAGE

• includes Tilt-Wheel and (K34) cruise control

ENGINE, 6.6L V8

• with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD) (Includes external oil cooler.

WORK VAN PREFERRED EQUIPMENT GROUP

• Includes standard equipment

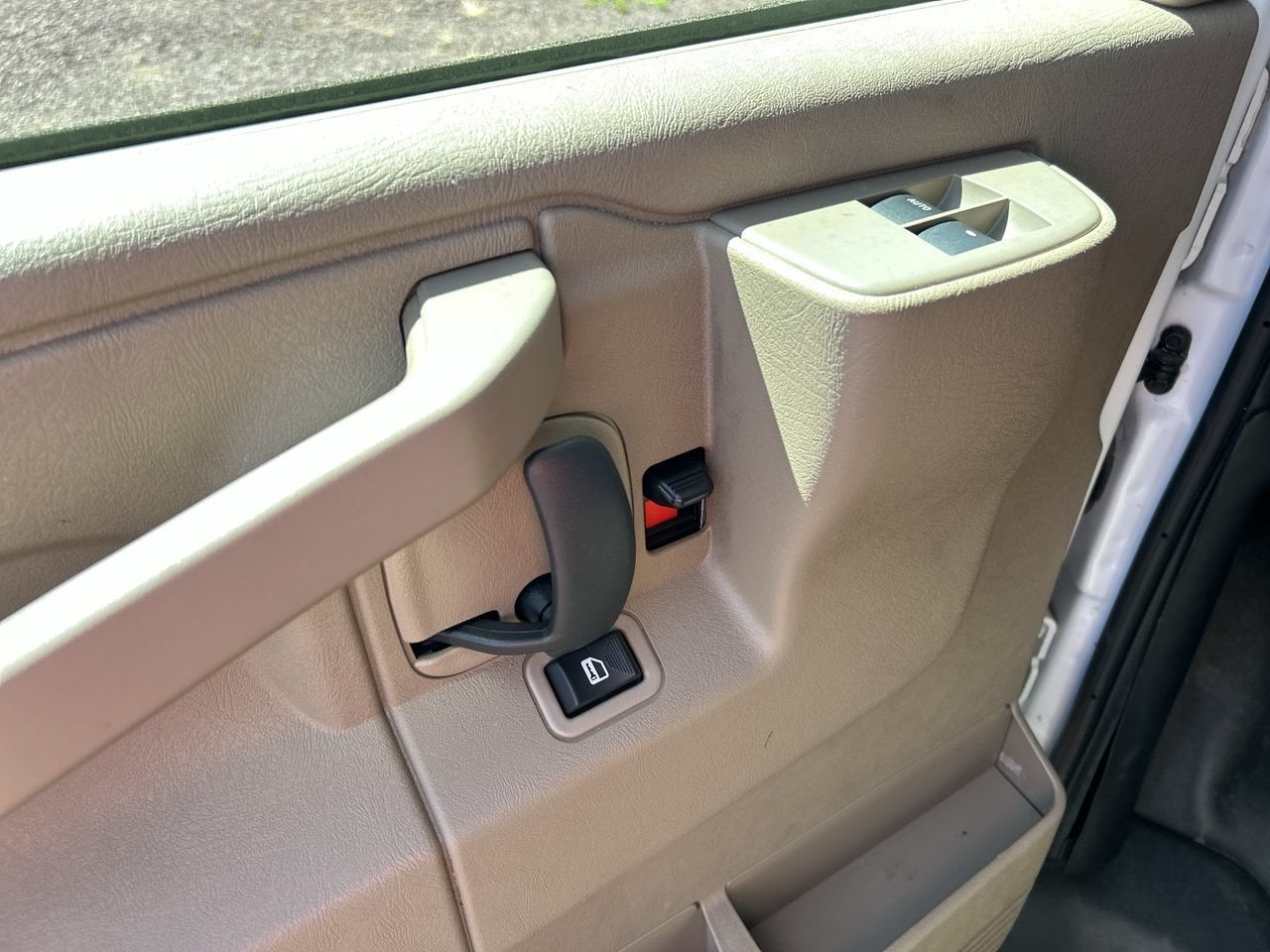

DOOR LOCKS, POWER

• with lock-out protection

BODY, SOFT-MOUNT DONUT AND BOLT

• (for mounting Upfit body to chassis)

POWER CONVENIENCE PACKAGE

• includes (A31) power windows and (AU3) power door locks

GVWR, 12,300 LBS. (5579 KG)

• (Includes (R05) dual rear wheel configuration. When ordered with (L8T) 6.6L gas V8 engine and (NHT) Enhanced Towing Performance Package includes (GT5) 4.10 axle ratio.

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

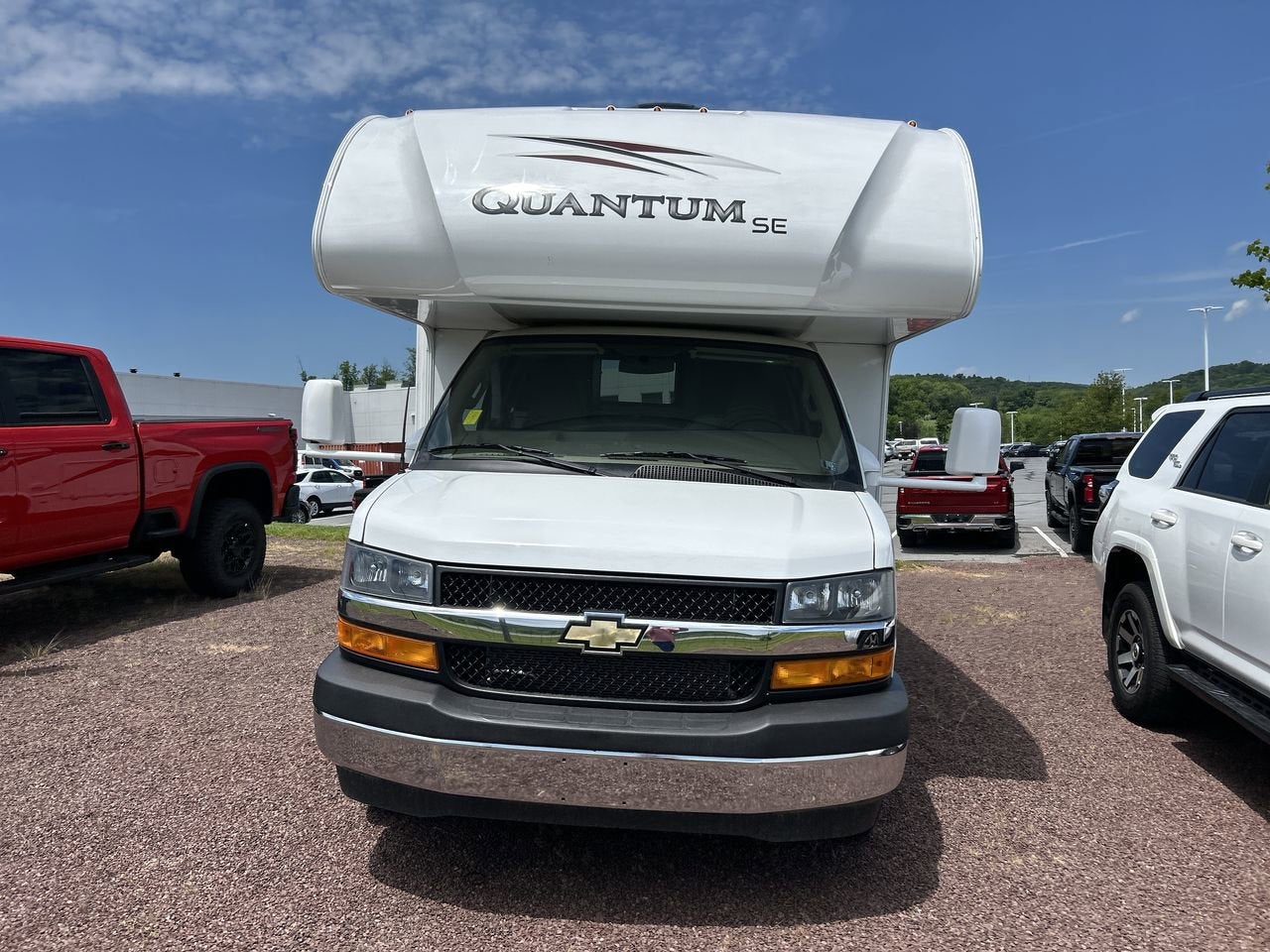

CHROME APPEARANCE PACKAGE

• (Includes (V46) front chrome bumper and (V22) chrome grille.

• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM HEAD RESTRAINTS AND INBOARD ARMRESTS Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)
• ONSTAR DELETE
• CRUISE CONTROL
• NEUTRAL CUSTOM CLOTH SEAT TRIM
• BATTERY 770 COLD-CRANKING AMPS PRIMARY ISOLATED 2ND HEAVY-DUTY 770 COLD-CRANKING AMPS allows 2nd battery to be used when the vehicle is not running without affecting ability to start the vehicle
• SUMMIT WHITE
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• ENHANCED TOWING PERFORMANCE PACKAGE GCWR increased to 20 000 lbs. (9072 kg). Includes (GT5) Rear axle 4.10 ratio.
• GRILLE CHROME
• TIRES FRONT LT225/75R16E ALL-SEASON BLACKWALL Jack and spare tire equipment bracket are not included.)
• REAR AXLE 4.10 RATIO
• FUEL ADDITIONAL 3-GALLONS 3 gallons of fuel in addition to normal assembly plant fill
• TIRES REAR LT225/75R16E ALL-SEASON BLACKWALL Jack and spare tire equipment bracket are not included.)
• WHEEL CONFIGURATION REAR DUAL
• WIRING JUNCTION BLOCK EQUIPMENT ACCESSORY includes 2-30 amp circuits
• FUEL TANK CAPACITY APPROXIMATELY 57 GALLONS (215.7L). As part of the base design includes the auxiliary feed fuel fitting and in tank return line.
• RV PACKAGE Includes (ZR7) Chrome Appearance Package (ZQ2) Power Convenience Package (ZQ3) Driver Convenience Package (D31) inside rearview manual day/night mirror or (DRJ) inside rearview mirror with rear vision camera display (BA3) console with swing-out storage bin (BNC) soft-mount donut and bolt (KW5) 220 amp alternator (TP3) dual batteries (770 cca primary and 770 cca isolated) SEO (8E1) 3 additional gallons of fuel and (9L7) equipment accessory wiring junction block
• BODY STANDARD (STD)
• WHEELS 6 - 16 X 6.5 (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL HEAVY DUTY
• HUBCAP DELETE
• ALTERNATOR 220 AMPS
• DRIVER CONVENIENCE PACKAGE includes Tilt-Wheel and (K34) cruise control
• CONSOLE ENGINE COVER with swing-out storage bin
• ENGINE 6.6L V8 with Direct Injection and Variable Valve Timing gasoline (401 hp [299 kW] @ 5200 rpm 464 lb-ft of torque [629 N-m] @ 4000 rpm) (STD) (Includes external oil cooler.
• PAINT SOLID
• VISORS DRIVER AND FRONT PASSENGER VINYL in lieu of standard cloth
• WORK VAN PREFERRED EQUIPMENT GROUP Includes standard equipment
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking Powertrain Grade Braking and Tap-Up/Tap-Down Driver Shift Control (STD)
• DOOR LOCKS POWER with lock-out protection
• BODY SOFT-MOUNT DONUT AND BOLT (for mounting Upfit body to chassis)
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT
• BUMPER FRONT CHROME WITH STEP-PAD
• POWER CONVENIENCE PACKAGE includes (A31) power windows and (AU3) power door locks
• WINDOWS POWER
• GVWR 12 300 LBS. (5579 KG) (Includes (R05) dual rear wheel configuration. When ordered with (L8T) 6.6L gas V8 engine and (NHT) Enhanced Towing Performance Package includes (GT5) 4.10 axle ratio.
• TIRE VALVE STEMS BRASS IN LIEU OF STANDARD Also included on spare when furnished
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• CHROME APPEARANCE PACKAGE (Includes (V46) front chrome bumper and (V22) chrome grille.
• OUTSIDE TEMPERATURE DISPLAY
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• WiFi Hotspot
• Requires Subscription
• Bucket Seats
• Bucket Seats
• Trip Computer
• Immobilizer
• Power Outlet
• Power Outlet
• A/C
• Rear Defrost
• Back-Up Camera
• Daytime Running Lights
• Traction Control
• Stability Control
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Passenger Air Bag On/Off Switch
• Requires Subscription
• Back-Up Camera
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 770
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3206
• Curb Weight - Rear (lbs): 1762
• Gross Vehicle Weight Rating Cap (lbs): 12300
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Gross Combined Wt Rating (lbs): 20000
• Gross Combined Wt Rating (lbs): 16000
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 4.10
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.58 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: XHF
• Front Tire Order Code: XLP
• Rear Tire Order Code: YHF
• Rear Tire Order Code: YLP
• Front Tire Size: LT225/75R16E
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT225/75R16E
• Rear Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2335
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 2150
• Rear Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 57
• Fuel Tank Capacity, Approx (gal): 32
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 159
• Length, Overall (in): 267.15
• Width, Max w/o mirrors (in): 94.53
• Width, Max w/o mirrors (in): - TBD -
• Height, Overall (in): 83.78
• Overhang, Front (in): 39.7
• Front Bumper to Back of Cab (in): 98.7
• Cab to Axle (in): 100
• Cab to End of Frame (in): 168.45
• Ground to Top of Frame (in): 30.08
• Frame Width, Rear (in): 42
• Ground Clearance, Front (in): 9.3
• Ground Clearance, Rear (in): 8.35
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.85
• Front Leg Room (in): 41.35
• Front Shoulder Room (in): 68.85
• Front Hip Room (in): 65.48
• Summary
• Vehicle Name: Chevrolet Express Commercial Cutaway
• Body Style: 159.0" WB
• Body Code: ZW9
